ACTFLEX 906 WPU

​

Class III Tested | 500%+ Elongation | Direct-Stick Tiling

Single-component water-based polyurethane membrane for wet areas and protected external areas beneath tiles and screeds.

Independent reports to AS/NZS 4858:2004 (251-5) and AS 4654.1:2012 (251-3) record passes in 50-cycle movement at 4 mm, water immersion, detergent immersion and heat ageing. As a system with ACTFLEX BIOSET it passed AS ISO 13007.5 at 1.128 MPa initial and 1.293 MPa heat-aged adhesion. Its non-slump body builds evenly on walls and floors, and at 35 g/L VOC it rolls on in ventilated internal spaces without solvent management. Use it in bathrooms, laundries, podiums, parapets, façades and pedestal-paver systems, installed to AS 3740:2021 and AS 4654.2. Not for permanent UV exposure, pools, planters, potable water or negative pressure.

specs

Technical Specifications.

Waterproof Time:

72 hours after final coat (full cure).

Coverage:

8–10 m² per 20 kg pail at 1.2 mm total DFT; two coats

Usable period after opening:

​

Touch dry time minimum:

Tack-free: 6 h at 25°C, 50% RH

Vapour Pressure @ 25°C:

​

Application Temperature:

10°C-26°C

Shelf Life:

12 months

Membrane
Classification:

Class III

Colour:

Grey

Tack Free Time:

6 hours @ 25°C

Recoat Time:

6–8 h; max. 48 h at 25°C, 50% RH

Elongation at Break:

517% (AS/NZS 4858); 518% (AS 4654.1)

Recommended
Thickness:

Walls and floors: minimum 1.2 mm total DFT, minimum two coats (approx. 0.6 mm DFT per coat).

Chemical
Resistant:

​

Full Cure:

3 days @ 25°C, 50% RH

Chemical Base:

Water-based polyurethane-modified polymer

Cure Mechanism:

Water evaporation

Tear Propagation
Resistance:

​

Service
Temperature:

​

Solids Content:

73% ± 2%

Bond Strength:

30.37 N (ASTM C794, EP250-primed concrete)

Density:

Relative density: 1.35–1.50

Compressive
Strength:

​

Flow:

​

Acceptance of Cyclic Movement:

​

Dimensional Stability:

​

Control Elongation at Break:

​

Control Tensile Strength:

4.26 MPa (AS/NZS 4858); 3.54 MPa (AS 4654.1)

Water Immersion Elongation at Break:

​

Water Immersion Tensile Strength:

​

Detergent Immersion Elongation at Break:

​

Detergent Immersion Tensile Strength:

​

Heat Aging Elongation at Break:

​

Heat Aging Tensile Strength:

​

Field Seam Strength:

​

Temperature Resistance:
Water Vapour Transmission

​

Water Vapour Transmission:

​

Application Method:

​

VOC Content:

35 g/L (ASTM D3960 / D2369)

Mixing Ratio:

​

Viscosity:

​

Storage Temperature:

​

Flash Point:

​

UV Resistance:

​

Hydrostatic Pressure Resistance:

​

Water Vapour Transmission Rate (WVTR):

​

Abrasion Resistance:

​

Bacterial/Algae Resistance:

​

Application Time:

​

Environmental Impact:

​

Packaging Sizes:

​

Hardness:

​

Adhesion to Substrate:

​

Appearance After Curing:

​

Clean-up Requirements:

​

Certification Standards:

​

calculator

Coverage Calculator.

100m2

Based on a manufacturers average recommended coverage of 8–10 m² per 20 kg pail at 1.2 mm total DFT; two coats

Required:

223 kg

pdfs

Product Documentation.

Technical Data Sheet (PDF Download)

Safety Data Sheet 1 (PDF Download)

Safety Data Sheet 2 (PDF Download)

Compliance Testing Report 1 (PDF Download)

Compliance Testing Report 2 (PDF Download)

Compliance Testing Report 3 (PDF Download)

Low VOC Certificate (PDF Download)

Product How To Guide (PDF Download)

Technical Drawings (PDF Download)

3d

Application Model

ACTFLEX 906 WPU

locate

Find a Stockist Near You

Company Name

Distance

Address

Phone

ACTFLEX 906 WPU

Available in (sizes)

5 kg and 20 kg pails

Need to Know More?

I am a…

Got a question about ACTFLEX 906 WPU? Our technical team can help with specification, surface prep, coverage and compatibility.

Call (02) 8021 3517
Email info@forspec.com.au

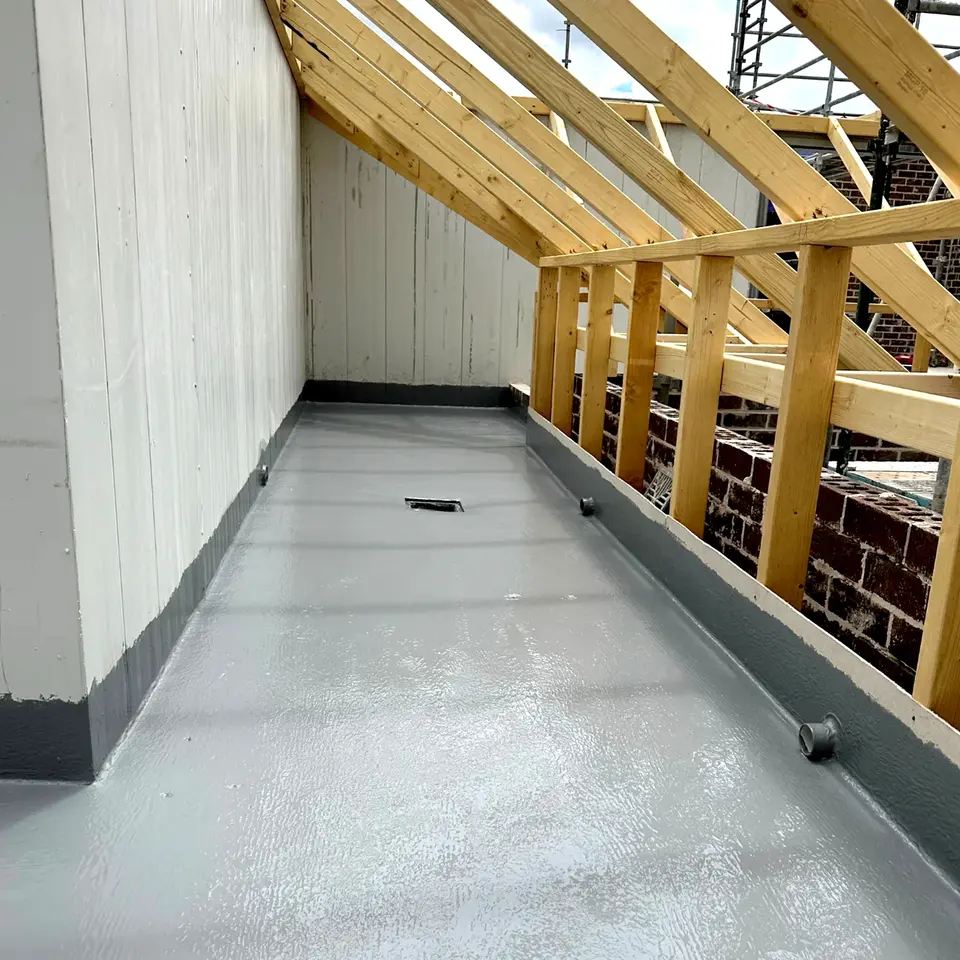

ACTFLEX 906 WPU GALLERY
